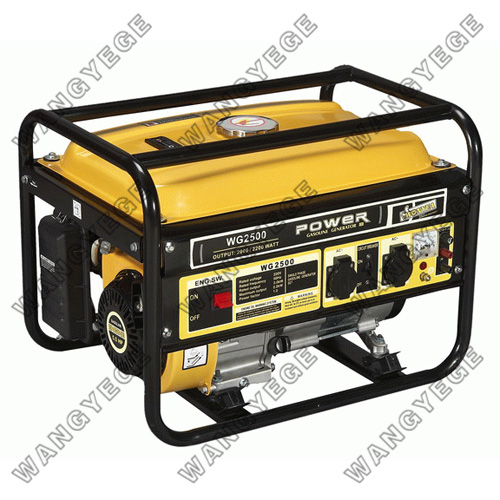

Gasoline Generator with WE168F/WE168FE Engine and 15L Fuel Capacity

Product Name: Gasoline Generator with WE168F/WE168FE Engine and 15L Fuel Capacity
Model NO.: WG2500/WG2500E

Product Details: Gasoline Generator with WE168F/WE168FE Engine and 15L Fuel Capacity

Features and Benefits:

● Powered by Wangye 4-Stroke OHV petrol Engine.
● Neat and economical for classical design.
● Circuit breaker protects overload operation.
● Emergency low oil alert warn the low lube oil level.
● Large muffler for quiet operation.
● AVR alternator provides stable voltage and current.
● Standard configuration of voltmeter.

About:
Rated output 2.0kW,Max. output 2.5kW,Single Phase,AVR,
5.5HP,Gasoline,Single Cylinder,4-Stroke,OHV,Recoil Start & electric starting.

Description:

Model	WG2500/WG2500E
Type	Revolving field type 2 poles generator
Voltage Regulate	Capacitance & AVR
AC Frequency (Hz)	60	50
AC Output Voltage (V)	110;120;110/220;120/240	220;230;115/230
Cont. AC Output (VA)	2200	2000
Max. AC Output (VA)	2500	2200
DC Output (V/A)	12 / 8.3
Engine Model	WE168F / WE168FE
Type	Single cylinder,Air-cooled,4-stroke OHV
Starting System	Recoil / Electric Start
Fuel Tank Capacity (L/gal)	15 / 3.96
Packing Dimensions (mm/in.)	605x435x450 /23.8x17.1x17.7
Net Weight (kg/lb)	45(99.2) /48(105.8)
